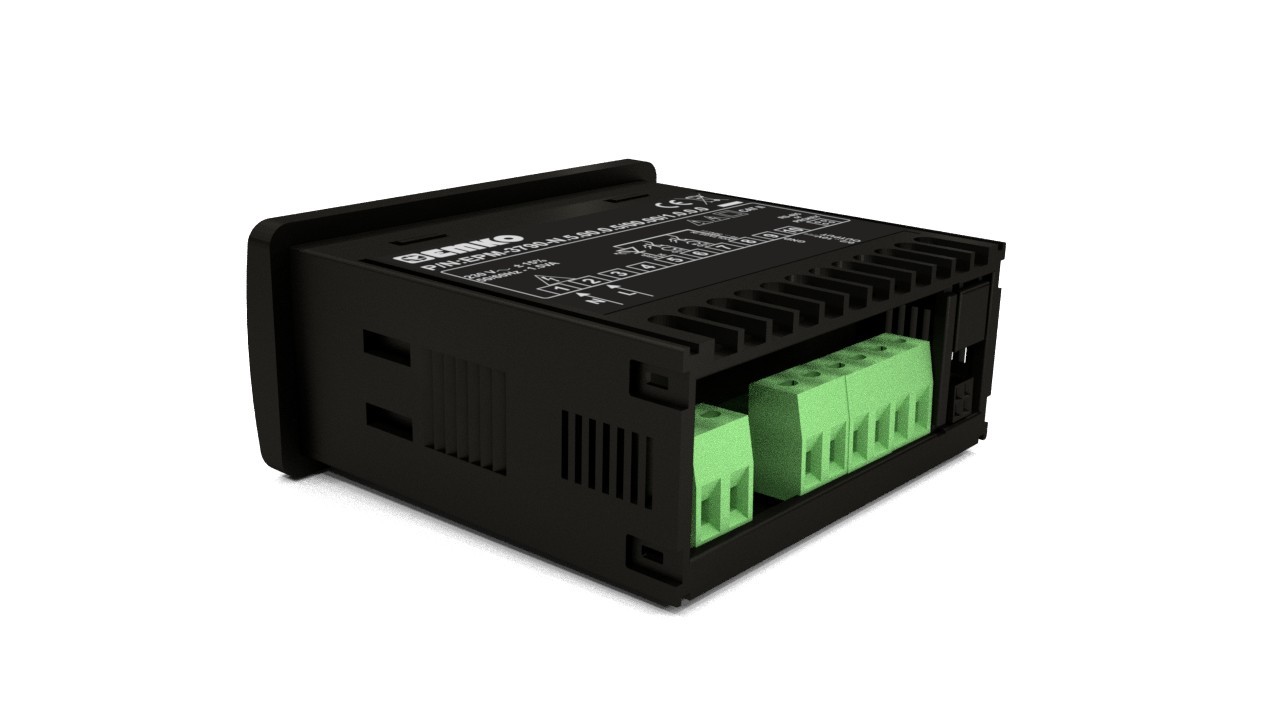

EPM-3790-N
Digital Potentiometer ( 77 X 35mm)
Forward, Reverse direction outputs and error input
for V/F Speed Controller
Operation at Adjustable Set Value
Ramp Function
Economical
Easy to User
4 Digits Display
Easily adjustable set value from front panel
Configurable display scale between -1999 and 9999
Adjustable decimal point
Set value low limit and set value high limit boundaries
Adjustable ramp up and ramp down time
0/2...10Vdc Voltage output or 0/4...20mAdc Current output
(It must be determined in order.) Share :
for V/F Speed Controller
Operation at Adjustable Set Value
Ramp Function
Economical
Easy to User
4 Digits Display
Easily adjustable set value from front panel
Configurable display scale between -1999 and 9999
Adjustable decimal point
Set value low limit and set value high limit boundaries
Adjustable ramp up and ramp down time
0/2...10Vdc Voltage output or 0/4...20mAdc Current output
(It must be determined in order.) Share :
| Features | Descriptions |
| Physical Features | |
| Dimensions | 77mm x 35mm x 62.5mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage / Operating Temperature | -40 ºC with +85 ºC / 0 ºC with +50 ºC arasında. |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 230 Vac (+%15) 50/60 Hz. 1.5 VA 115 Vac(+%15) 50/60 Hz. 1.5 VA 24 Vac(+%15) 50/60 Hz. 1.5 VA 24 Vac/dc (+%15, +%10) 50/60 Hz. 1.5 VA 100-240Vac 50/60Hz 10-30 Vdc |
| Sensor Inputs | |
| Optional Sensor Inputs | |
| Scale | Configurable between -1999 and 9999 |
| Accuracy | |
| Output | |
| Relay Output | 0/2...10Vdc Voltage Output (Maks. 10mA) or 0/4...20mAdc Output Current |
| SSR Output | |
| Analogue Output | |
| Optional Outputs | Max. 5mA @ 30Vdc Max. 5mA @ 30Vdc |
| Control | |
| Control Form | |
| Reading Frequency | |
| Communication Protocols | |
| Approvals | CE , EAC |
