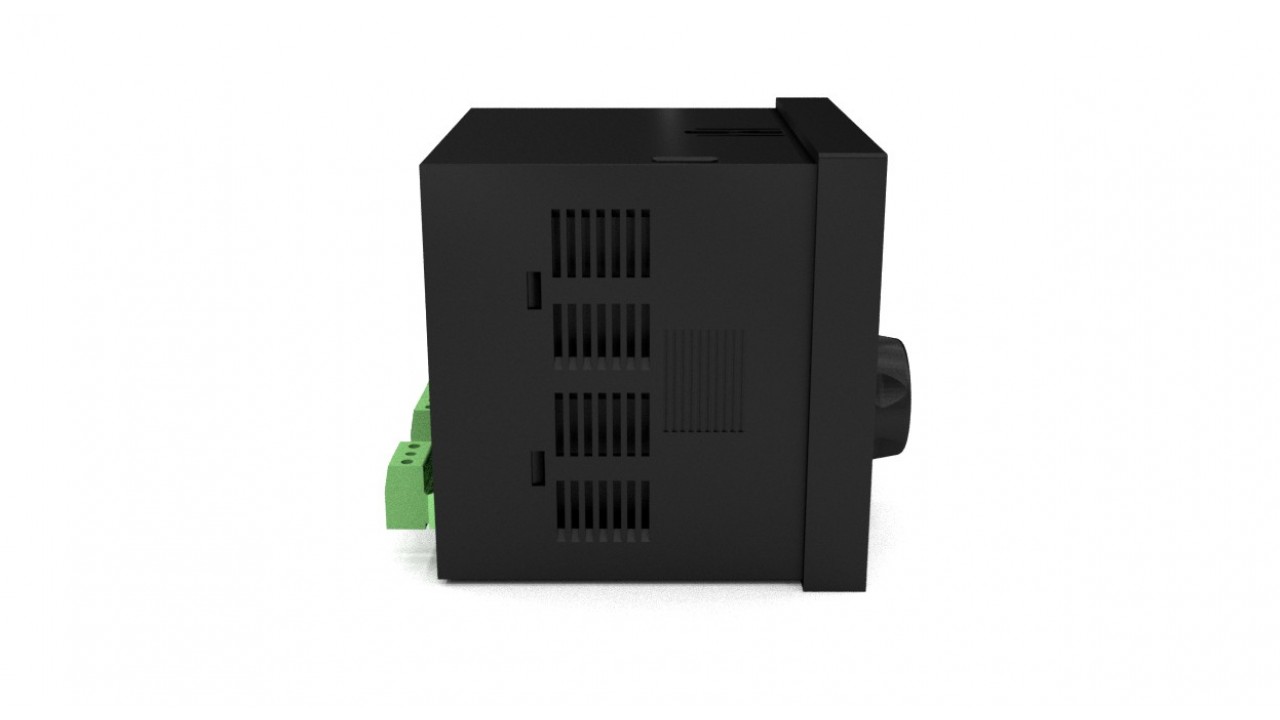

ESD-9950-N
Analogue Temperature Controller with digital indicator
Adjustable temperature offset
Programmable control and alarm functions for control outputs
Programmable ON-OFF, P, PI, PD, PID control forms
With Auto Tune / Self Tune operation, the PID coefficients
adaptation to the system
4 Digits display
J, K, R, S type Thermocouple Input or
2 or 3 wire PT 100 Input Share :
Programmable control and alarm functions for control outputs
Programmable ON-OFF, P, PI, PD, PID control forms
With Auto Tune / Self Tune operation, the PID coefficients
adaptation to the system
4 Digits display
J, K, R, S type Thermocouple Input or
2 or 3 wire PT 100 Input Share :
| Features | Descriptions |
| Physical Features | |
| Dimensions | 96 x 96 mm x 100mm |
| Protection Class | IP65 at front, IP20 at rear |
| Installation | Fixed Installation |
| Storage / Operating Temperature | 0...50ºC |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 230 Vac (+%15) 50/60 Hz. 3 VA 115 Vac(+%15) 50/60 Hz. 3 VA 24 Vac (+%15) 50/60 Hz. 3 VA 24 Vac/Vdc (+%15) 50/60 Hz. 3 VA 10 - 30 Vdc |
| Sensor Inputs | ''J''Fe,Cu,Ni ''K''Ni,Cr ''R''Pt13%RhPt ''S''Pt10%RhPt PT-100 |
| Optional Sensor Inputs | |
| Scale | Fe CuNi -200°C...900°C NiCr -200°C...1300°C Pt13%RhPt 0°C...1700°C Pt10%RhPt 0°C...1700°C PT 100 -200ºC,650ºC |
| Accuracy | ± 0.25% of scale for thermocouple and thermoresistance. |
| Output | |
| Relay Output | 7A@250 Vac at resistive load 7A@250 Vac at resistive load (Alarm Output) |
| SSR Output | Maximum 10mA, Maks. 17Vdc |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | ON/OFF, P, PI, PD veya PID (Control form can be programmed by the user. |
| Reading Frequency | 10 readings per second |
| Communication Protocols | |
| Approvals | CE |
