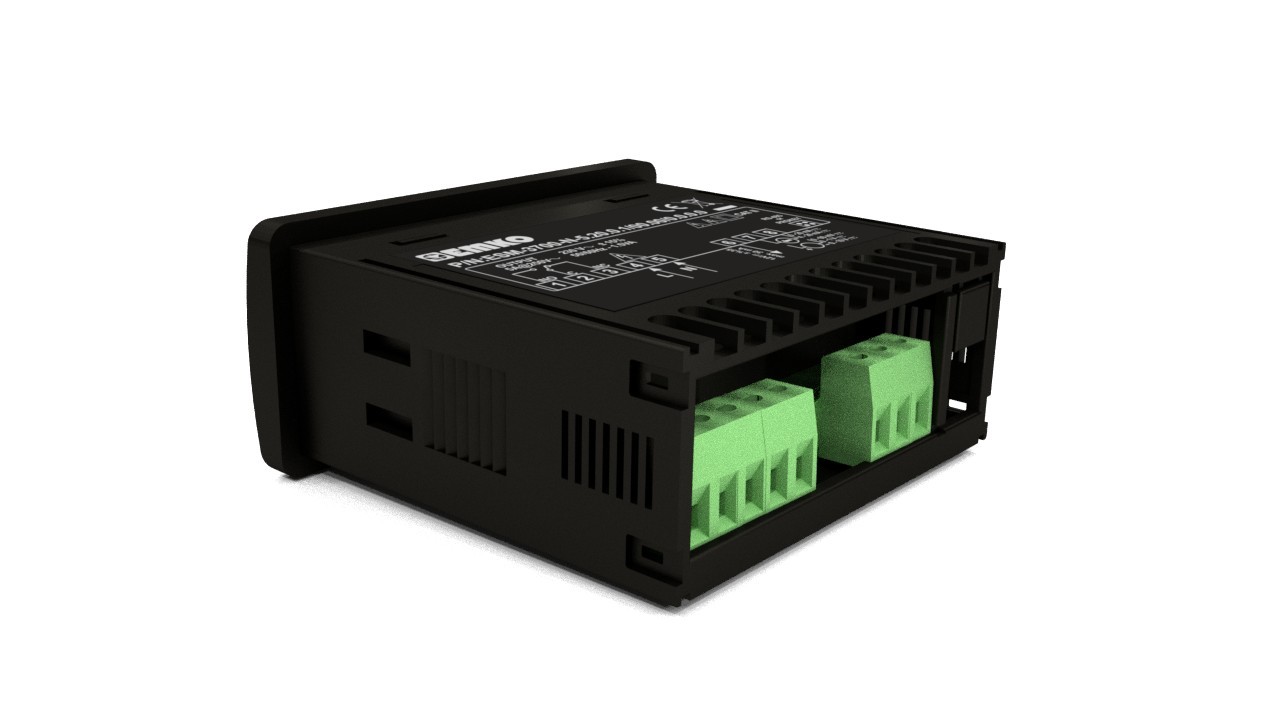

ESM-3700-N
Single Set Process Indicator
Adjustable decimal point
5 Stage analog input filter option
Maximum and minimum measurement value are
registered to the devices memory
Maximum or minimum measurement value van be shown
continuously on the display
4 Digits display
Easily adjustable from front panel
Configurable display scale between -1999 and 9999
Selectable universal process Input
(0-10Vdc, 0-1Vdc, 0-60mVdc, 0-20mAdc, 4-20mAdc)
User can be adjust device’s reading value for selected input type
Alarm output, Relay or SSR driver output (It must be determined in order)
Adjustable alarm set value from front panel Share :
5 Stage analog input filter option
Maximum and minimum measurement value are
registered to the devices memory
Maximum or minimum measurement value van be shown
continuously on the display
4 Digits display
Easily adjustable from front panel
Configurable display scale between -1999 and 9999
Selectable universal process Input
(0-10Vdc, 0-1Vdc, 0-60mVdc, 0-20mAdc, 4-20mAdc)
User can be adjust device’s reading value for selected input type
Alarm output, Relay or SSR driver output (It must be determined in order)
Adjustable alarm set value from front panel Share :
| Features | Descriptions |
| Physical Features | |
| Dimensions | 77 mm x 35 mm 62,5 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage / Operating Temperature | 0...50°C |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 230 Vac (-15%,+10%) 50/60 Hz. 1,5 VA 115 Vac (-15%,+10%) 50/60 Hz. 1,5 VA 24 Vac (-15%,+10%) 50/60 Hz. 1,5 VA 24 Vac/dc (-15%,+10%) 1,5 VA 100-240Vac 50/60Hz 10...30Vdc |
| Sensor Inputs | Selectable by configuration parameters 0-10 Vdc, 0-1 Vdc, 0-60 mV, 0-20 mA, 4-20 mA |
| Optional Sensor Inputs | |
| Scale | |
| Accuracy | ± 0.05 % of full scale |
| Output | |
| Relay Outputı | 5A@250 Vac at resistive load |
| SSR Outputı | 10mA@5Vdc Optional |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | On/Off |
| Reading Frequency | 3 readings per second |
| Communication Protocols | MODBUS-RTU |
| Approvals | UL Recognized Component (Fwith No : E 254103), GOST-R, CE |
