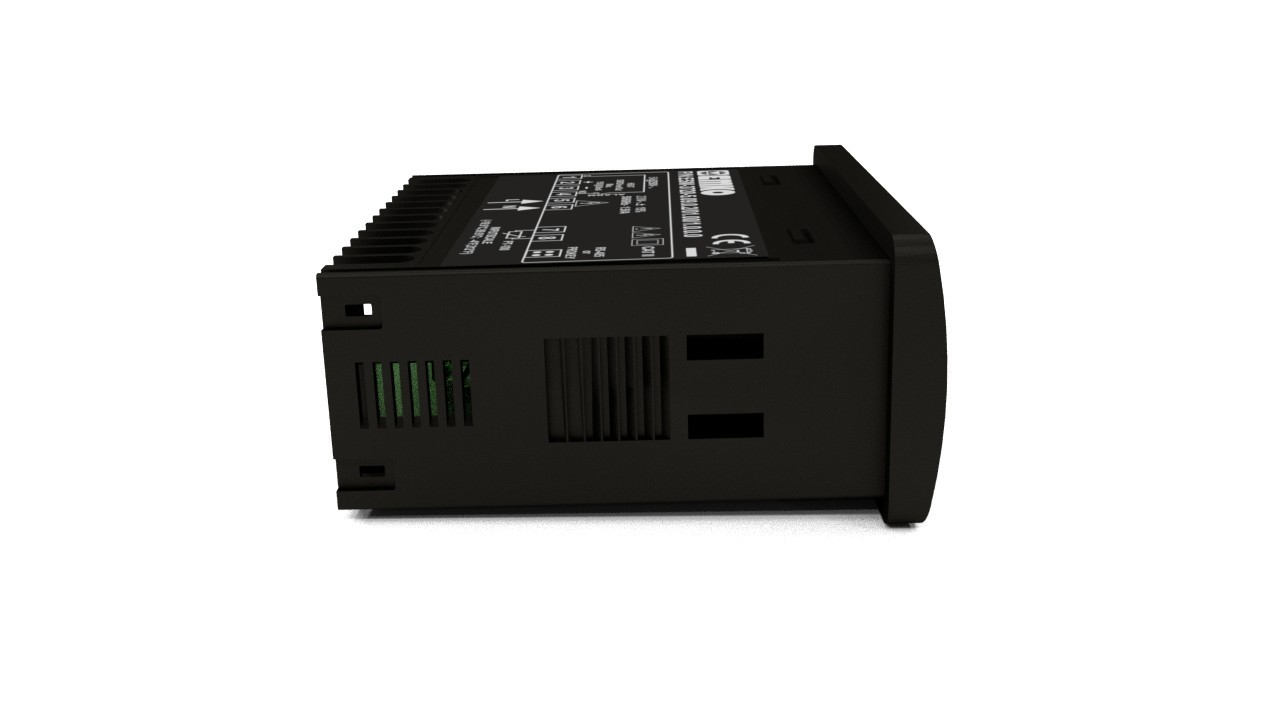

ESM-3720 Temperature Controller

Installing parameters using Prokey
PID or ON/OFF selectable temperature control
Password protection for programming section
Having CE mark according to European Norms
Adjustable internal buzzer according to sensor
defect status
Digits Display
NTC Input or PTC Input or
Adjustable temperature offset
Set value low limit and set value high limit boundaries
Remote acces, data collecting and controlling
with Modbus RTU (Optional)

Features	Descriptions
Physical Features
Dimensions	76mm x 34,5mm x 71mm
Protection Class	IP65 at front, IP20 at rear
Installation	Fixed Installation
Storage / Operating Temperature	0°C...50°C
Storage / Operating Humidity	90 % max. (None condensing)
Electrical Features
Supply Voltage and Power	24Vdc/ac ( ±%15) 50/60Hz - 1.5VA 24 Vac (±%15) 50/60 Hz. 1.5 VA 100-240Vac 50/60Hz 115 Vac (±%15) 50/60 Hz. 1.5 VA 230 Vac (±%15) 50/60 Hz. 1.5 VA 10-30Vdc 1.5W
Sensor Inputs	NTC, PTC J, K, (IEC584.1) (ITS90) Selectable from parameters PT-100 (IEC751) (ITS90) PT-1000
Optional Sensor Inputs
Scale	Fe CuNi 0°C,800°C NiCr Ni 0°C,999°C PT 100 -50°C,400°C / -19,9°C...99.9°C PT 1000 -50°C,400°C / -19,9°C...99.9°C PTC -50°C...150°C NTC -50°C....100°C
Accuracy	± % 0.1 of full scale for Thermoresistance
Output
Relay Output	5A@250 Vac at resistive load 5A@250 Vac at resistive load (Alarm Output)
SSR Output	Maximum 20 mA @ 17 Vdc
Analogue Output
Optional Outputs
Control
Control Form	Programmable On / Off, P, PI, PD, and PID
Reading Frequency	3 readings per second
Communication Protocols
Approvals	EAC, CE
