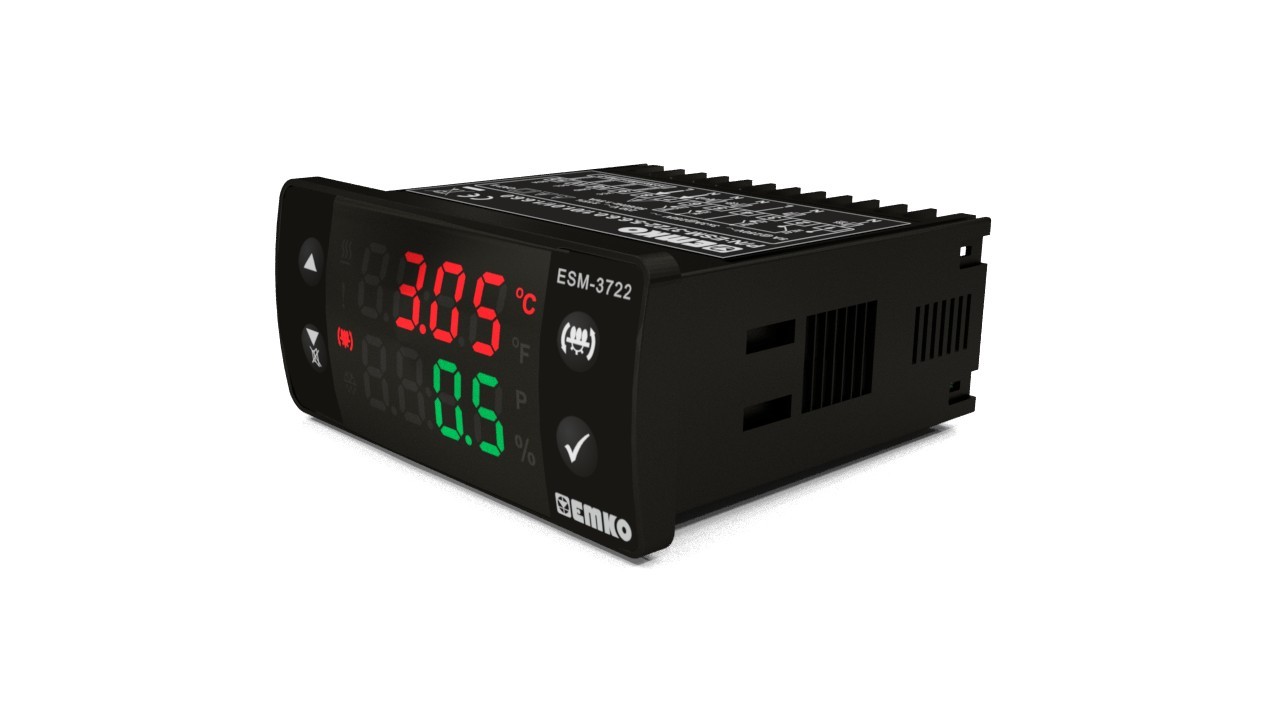

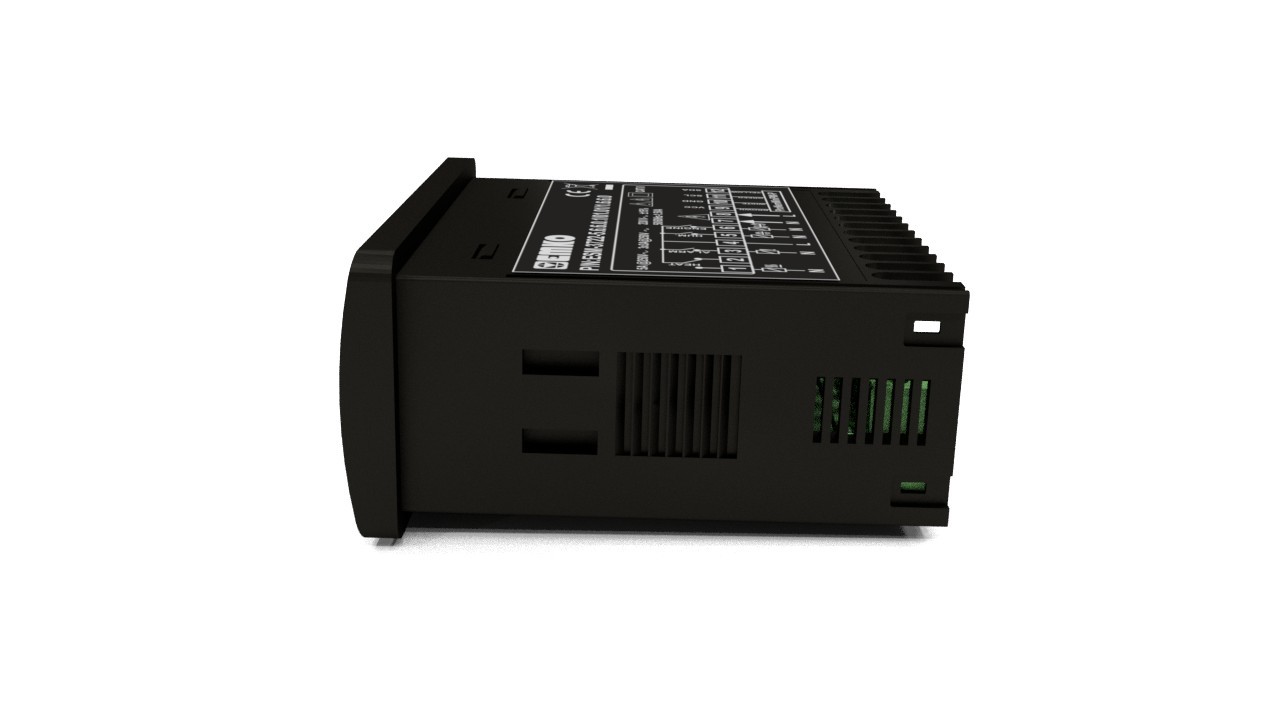

ESM-3722
Digital ON/OFF and PID Hatcher Controller
Temperature and Humidity
(NTC, PTC, PT-100 or ProNem Mini PMI-D)
Humidity Sensor Input
(0/2..10V, 0/4..20mA or ProNem Mini PMI-D)
Auto-Tune PID
Egg Tray manuel operation from front panel
4 Digits Temperature and 4 Digits Humidity Display
Pronem PMI-P Temperature Sensor Input
Pronem Mini PMI-P Humidity Sensor Input
4 Output for
Temperature Control Output, Egg Tray Turning Output
Humidity Control Output, Alarm Control Output
PID or ON/OFF Selectable Temperature Control
Temperature and Humidity Set Value Boundaries Share :
(NTC, PTC, PT-100 or ProNem Mini PMI-D)
Humidity Sensor Input
(0/2..10V, 0/4..20mA or ProNem Mini PMI-D)
Auto-Tune PID
Egg Tray manuel operation from front panel
4 Digits Temperature and 4 Digits Humidity Display
Pronem PMI-P Temperature Sensor Input
Pronem Mini PMI-P Humidity Sensor Input
4 Output for
Temperature Control Output, Egg Tray Turning Output
Humidity Control Output, Alarm Control Output
PID or ON/OFF Selectable Temperature Control
Temperature and Humidity Set Value Boundaries Share :
| Features | Descriptions |
| Physical Features | |
| Dimensions | 76 mm x 34,5 mm x 71 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage / Operating Temperature | -40°C to +85°C / 0°C to +50°C |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 230 Vac (+%15) 50/60 Hz. 1.5 VA 115 Vac (+%15) 50/60 Hz. 1.5 VA 24 Vac (+%15) 50/60 Hz. 1.5 VA 24 Vac/dc (+%15, +%10) 50/60 Hz. 1.5 VA 10-30Vdc 1,5 W |
| Sensor Inputs | ProNem Mini PMI-P, NTC, PTC, RTD |
| Optional Sensor Inputs | |
| Scale | ProNem Mini PMI-P -20°C / 80°C PT 100 0°C...100°C NTC 0°C...100°C PTC 0°C...100°C |
| Accuracy | ± % 1 of full scale |
| Output | |
| Relay Output | 5A@250 Vac at resistive load (heating output) 3A@250 Vac at resistive load (humidificating,alarm and egg tray rotator outputs) |
| SSR Output | Maximum 30mA, Maximum 15V |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | On / Off and PID |
| Reading Frequency | |
| Communication Protocols | |
| Approvals | EAC, CE |
