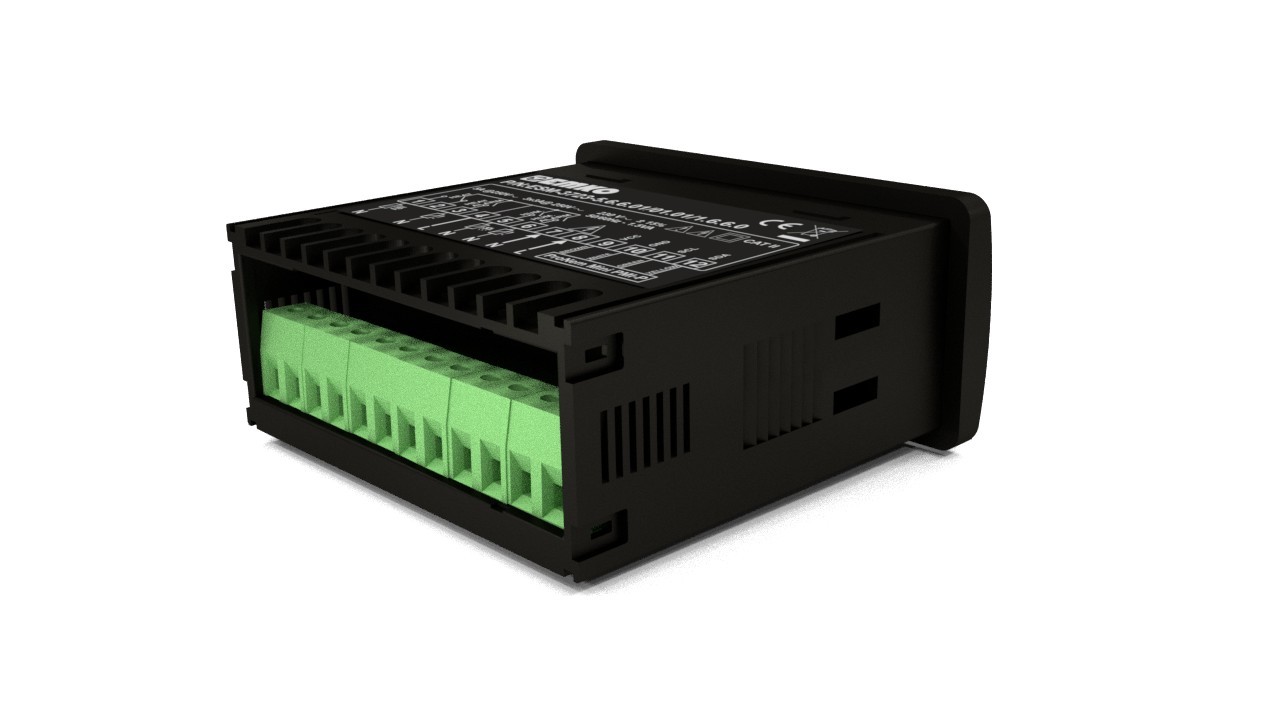

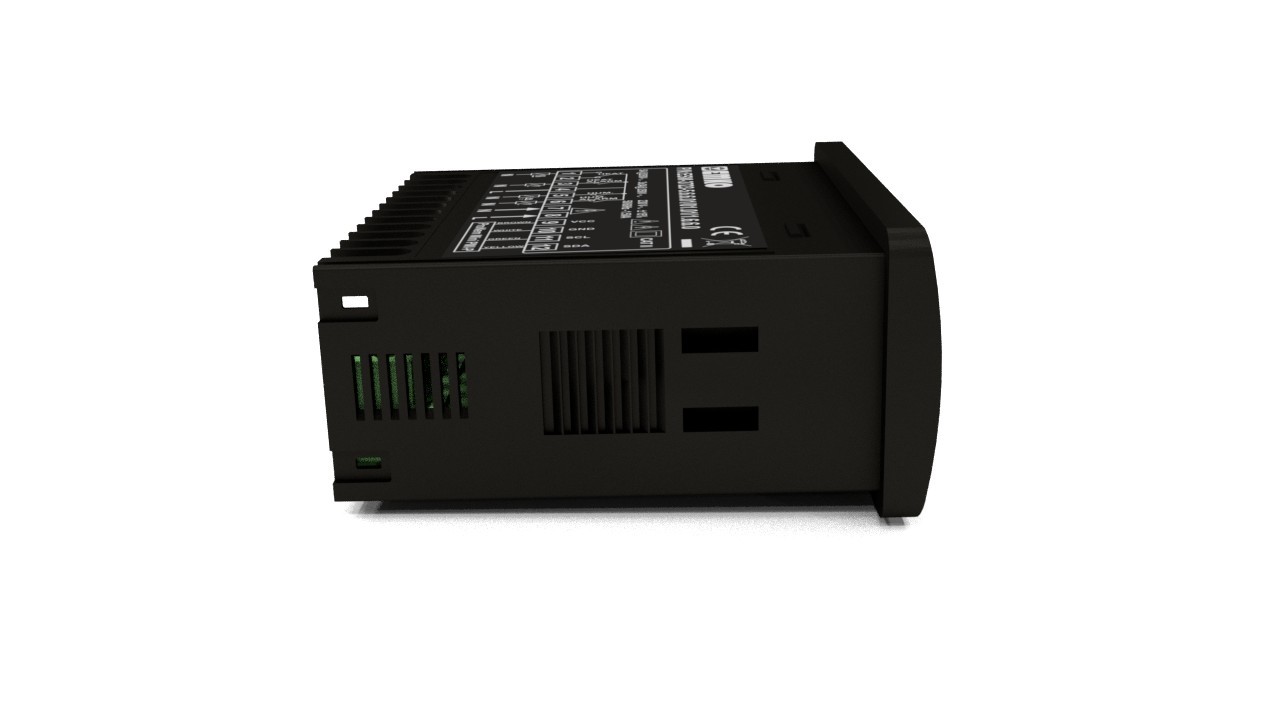

ESM-3723
Digital Temperature+Humidity Controller
Temperature Sensor Input
(NTC, PTC, PT-100 and ProNem Mini PMI-P)
Auto-Tune PID
Humidity Sensor Input
(0/2..10V, 0/4..20mA and ProNem Mini PMI-P)
4 Digits Temperature and 4 Digit Humidity Display
Heating Control Output, Heating Alarm Output
Humidity Control Output, Humidity Alarm Output
PID or ON/OFF selectable temperature control
Set Value Boundaries Share :
(NTC, PTC, PT-100 and ProNem Mini PMI-P)
Auto-Tune PID
Humidity Sensor Input
(0/2..10V, 0/4..20mA and ProNem Mini PMI-P)
4 Digits Temperature and 4 Digit Humidity Display
Heating Control Output, Heating Alarm Output
Humidity Control Output, Humidity Alarm Output
PID or ON/OFF selectable temperature control
Set Value Boundaries Share :
| Features | Descriptions |
| Physical Features | |
| Dimensions | 76mm x 34,5mm x 71mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage / Operating Temperature | -40°C with +85°C / 0°C with +50°C |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 24Vdc/ac ( ±%15) 50/60Hz - 1.5VA 24 V ac (±%15) 50/60 Hz. 1.5 VA 115 Vac (±%15) 50/60 Hz. 1.5 VA 230 Vac (±%15) 50/60 Hz. 1.5 VA 100-240Vac 50/60Hz 10-30Vdc 1.5W |
| Sensor Inputs | NTC, PTC, PT-100, 0/2...10Vdc, 0/4...20mAdc veya Pronem Mini PMI-P NTC (10kohm @ 25°C) veya PTC (1000 ohm @ 25°C) PT-100 IEC751 (ITS90) |
| Optional Sensor Inputs | |
| Scale | PT 100, IEC751(ITS90) 0°C...100°C PTC 0°C...100°C NTC 0°C...100°C Pronem Midi PMI-P -20°C...80°C |
| Accuracy | ± % 1 of full scale |
| Output | |
| Relay Output | Rezistif yükte 5 A@250 Vac at resistive load(Heating Output) Rezistif yükte 3 A@250 Vac at resistive load (Temperature Alarm, Humidty Alarm and Humidty Output) |
| SSR Output | Maximum 30mA, Maximum 15Vdc |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | On/Off or PID |
| Reading Frequency | 3 readings per second |
| Communication Protocols | |
| Approvals | EAC, CE |
