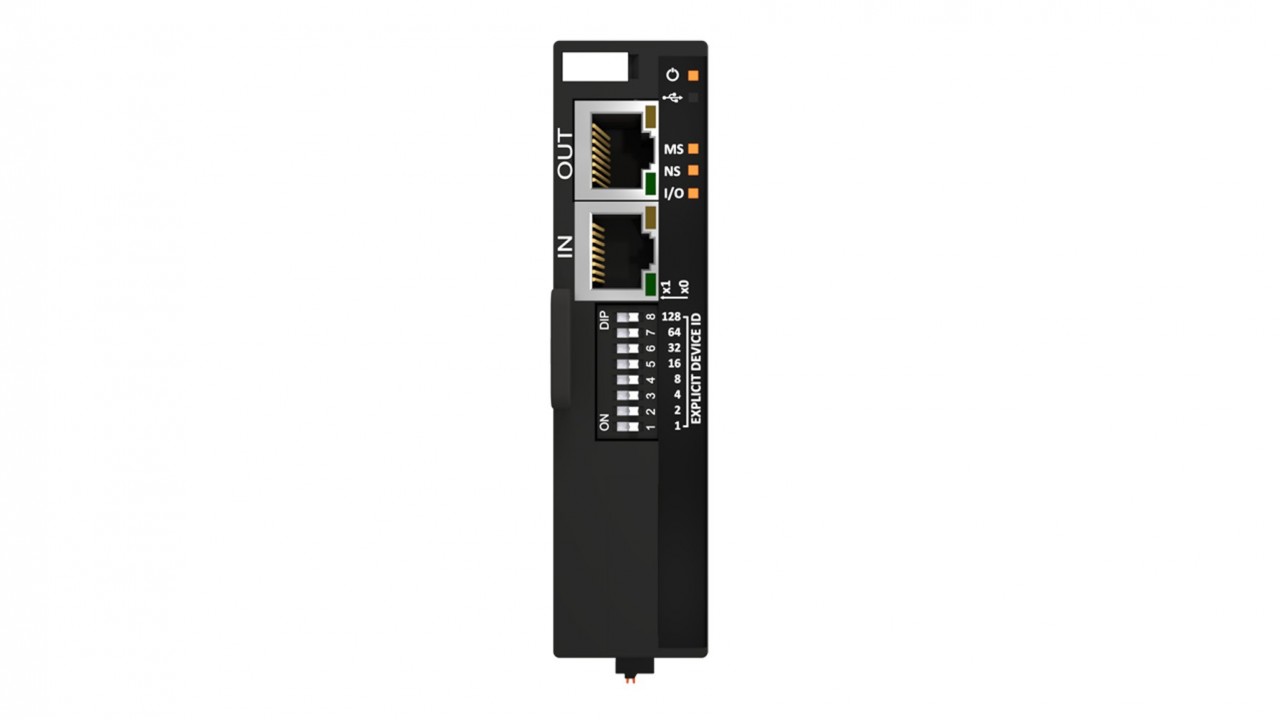

Ethernet Bus Coupler Communication Modules
IPERTU Communication Modules
Ethernet 10/100 Mbit
2x RJ45 Ethernet Socket
On the TCP side, 10 master devices can query simultaneously for each port.
Mini USB-USB2.0 (Software Download/Configuration),
Modular connection (max. 16 expansion modules excluding itself)
IP selection with dip switch adjustment
Change of Network parameters with DHCP/BootP and ARP
Protocols: TCP, UDP, DHCP, BootP, ICMP, ARP Share :
2x RJ45 Ethernet Socket
On the TCP side, 10 master devices can query simultaneously for each port.
Mini USB-USB2.0 (Software Download/Configuration),
Modular connection (max. 16 expansion modules excluding itself)
IP selection with dip switch adjustment
Change of Network parameters with DHCP/BootP and ARP
Protocols: TCP, UDP, DHCP, BootP, ICMP, ARP Share :
| Features | Descriptions |
| Technical Features | |
| Supply Voltage | 24Vdc ( ±%20) |
| Power Consumption | 2W |
| Communication Port | 1x USB (Mini USB2.0) - Program Installation/Configuration |
| Ethernet | 2x RJ45 Ethernet |
| Operating Temperature | -10°C...+60°C |
| Storage Temperature | -20°C...+70°C |
| Mounting Type | Rail Mounting |
| Approvals | CE |
