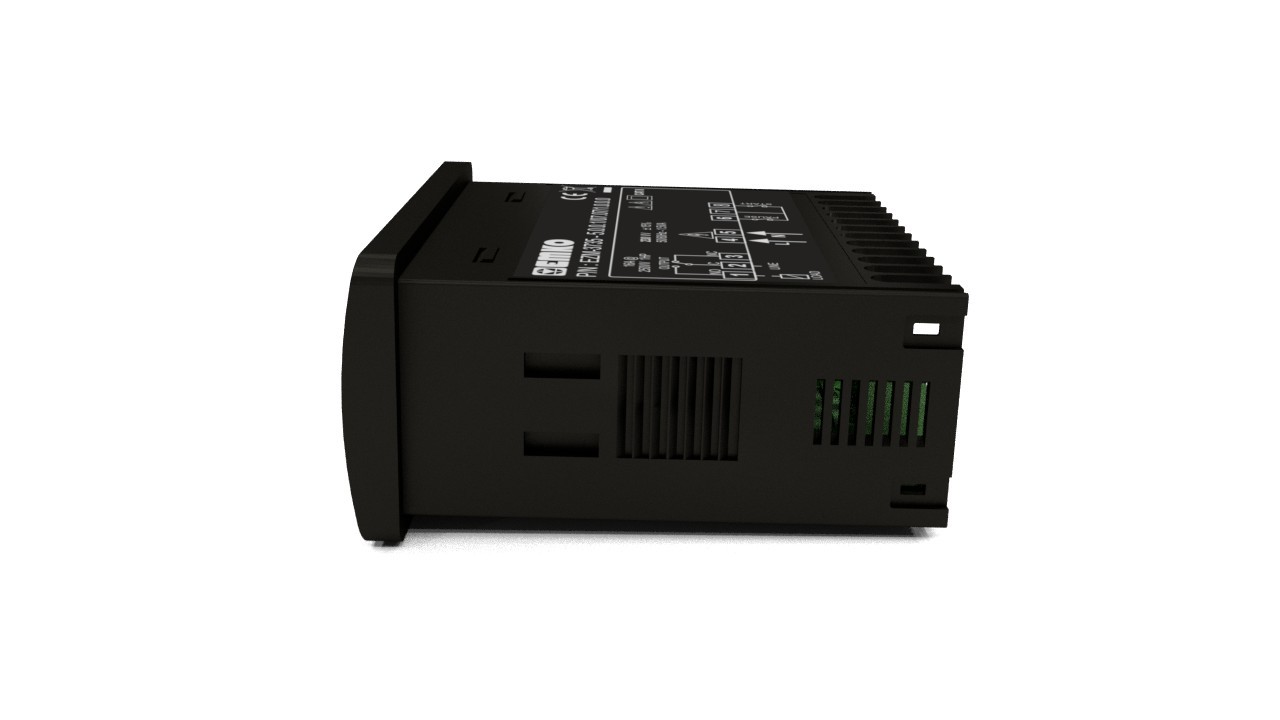

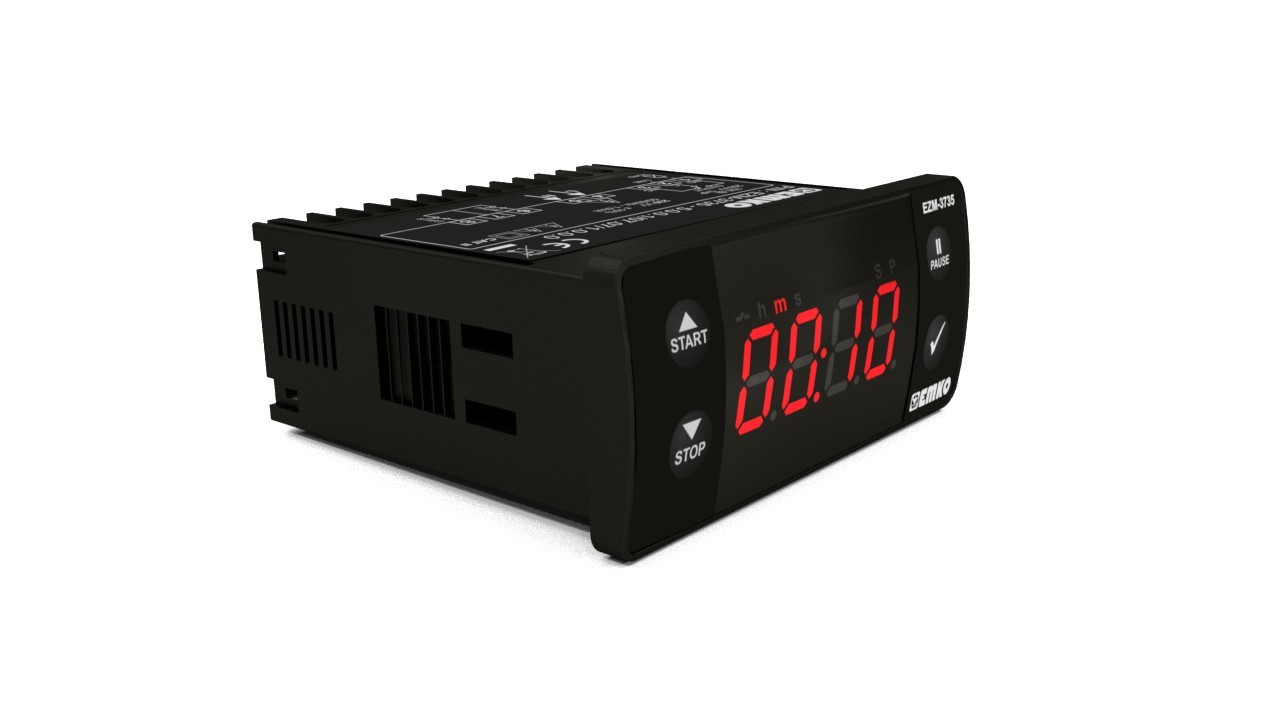

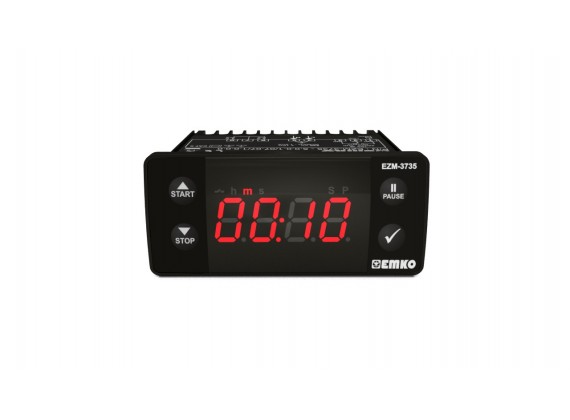

EZM-3735
Single SET Programmable Timer
4 Digits Display
Operation with One Set value
Single Contact Output for Timing control
External Start Input
Start and Stop Possibility by front Panel
Set value high limit boundaries
Display can be adjusted to show Second, Minute and Hour
Programmable Time Bases (Second, Minute, Hour)
Adjustable internal buzzer according to Timer Stop status.
Password protection for programming section
Having CE mark according to European Norms Share :
Operation with One Set value
Single Contact Output for Timing control
External Start Input
Start and Stop Possibility by front Panel
Set value high limit boundaries
Display can be adjusted to show Second, Minute and Hour
Programmable Time Bases (Second, Minute, Hour)
Adjustable internal buzzer according to Timer Stop status.
Password protection for programming section
Having CE mark according to European Norms Share :
| Features | Descriptions |
| Physical Features | |
| Dimensions | 76 mm x 34,5 mm x 71 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage Temperature | -40 ºC to +80 ºC |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 230 Vac (± %15) 50/60 Hz 1.5 VA 115Vac (± %15) 50/60 Hz 1.5 VA 100-240Vac 50/60 Hz. 24Vac (± %15) 50/60 Hz 1.5 VA 24Vac/dc (± %15) 50/60 Hz 1.5 VA 10-30 Vdc |
| Sensor Inputs | Mechanical contact |
| Optional Sensor Inputs | |
| Scale | |
| Accuracy | |
| Output | |
| Relay Output | 16(8) A@250 Vac for Resistive load (Output Relay) (Electrical life : 100.000 switching at full load) |
| SSR Output | |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | ON / OFF |
| Reading Frequency | |
| Communication Protocols | |
| Approvals | EAC, CE |
