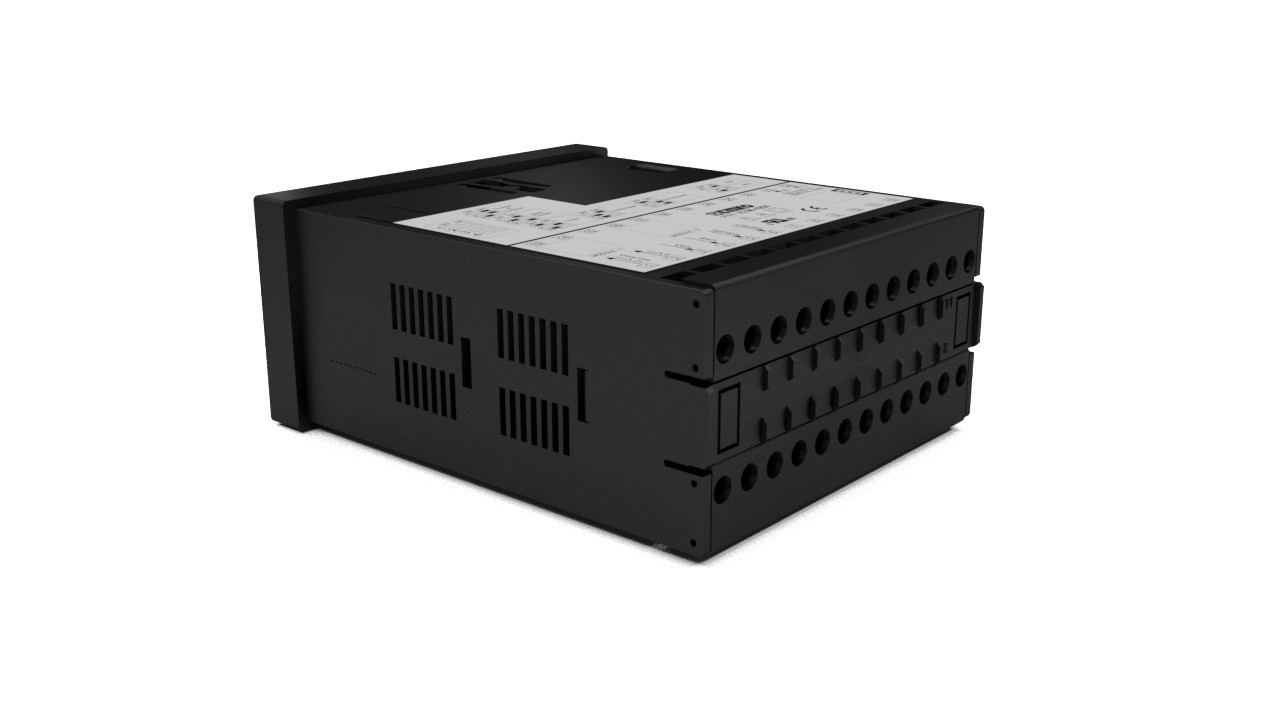

EZM-4950
Multifunctional Programmable Timer and Counter with RS 232/485 Serial Communication Unit
EZM-XX50
Configurable Counter, Totalizer Counter, Batch Counter,
Timer, Chronometer, Frequencymeter and Tachometer
Operation with Automatic and Manuel Reset
Programmable Time Bases for Timer and Chronometer
Multiplication Coefficient and Decimal Point Position
6 Digits display
Reset, Pause and ChA-ChB Counting Inputs
Absolute or Offset Operation in Counter Function
Different Alarm Alternatives in Frequencymeter and
Cycle Measuring Functions
INC, DEC, INC/INC, INC/DEC, UP/DOWN,
x1 / x2 / x4 Counting with Phase Shifting Property in Counter
Share :
Configurable Counter, Totalizer Counter, Batch Counter,
Timer, Chronometer, Frequencymeter and Tachometer
Operation with Automatic and Manuel Reset
Programmable Time Bases for Timer and Chronometer
Multiplication Coefficient and Decimal Point Position
6 Digits display
Reset, Pause and ChA-ChB Counting Inputs
Absolute or Offset Operation in Counter Function
Different Alarm Alternatives in Frequencymeter and
Cycle Measuring Functions
INC, DEC, INC/INC, INC/DEC, UP/DOWN,
x1 / x2 / x4 Counting with Phase Shifting Property in Counter
Share :
| Features | Descriptions |
| Physical Features | |
| Dimensions | 96 mm x 48 mm 86,5 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage / Operating Temperature | -40 ºC with +85 ºC / 0 ºC with +50 ºC |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 100-240 Vac (-15%,+10%) 50/60 Hz. 6 VA 24 Vac (-15%,+10%) 50/60 Hz. 6 VA 24 Vdc (-15%,+10%) 6 W |
| Sensor Inputs | 12 Vdc Maximum 50 mA |
| Optional Sensor Inputs | |
| Scale | |
| Accuracy | |
| Output | |
| Relay Output | EM0-400 Relay Output Module (3A @ 250V) |
| SSR Output | |
| Analogue Output | |
| Optional Outputs | EM0-400 Relay Output Module (3A @ 250V) EM0-410 SSR Output Module (20mA @ 18V) EM0-420 Dijital (Transistor) Output Module (40mA @ 18V) |
| Control | |
| Control Form | |
| Reading Frequency | |
| Communication Protocols | MODBUS-ASCII or RTU |
| Approvals | UL Recognized Component (File No : E 254103), EAC, CE |
