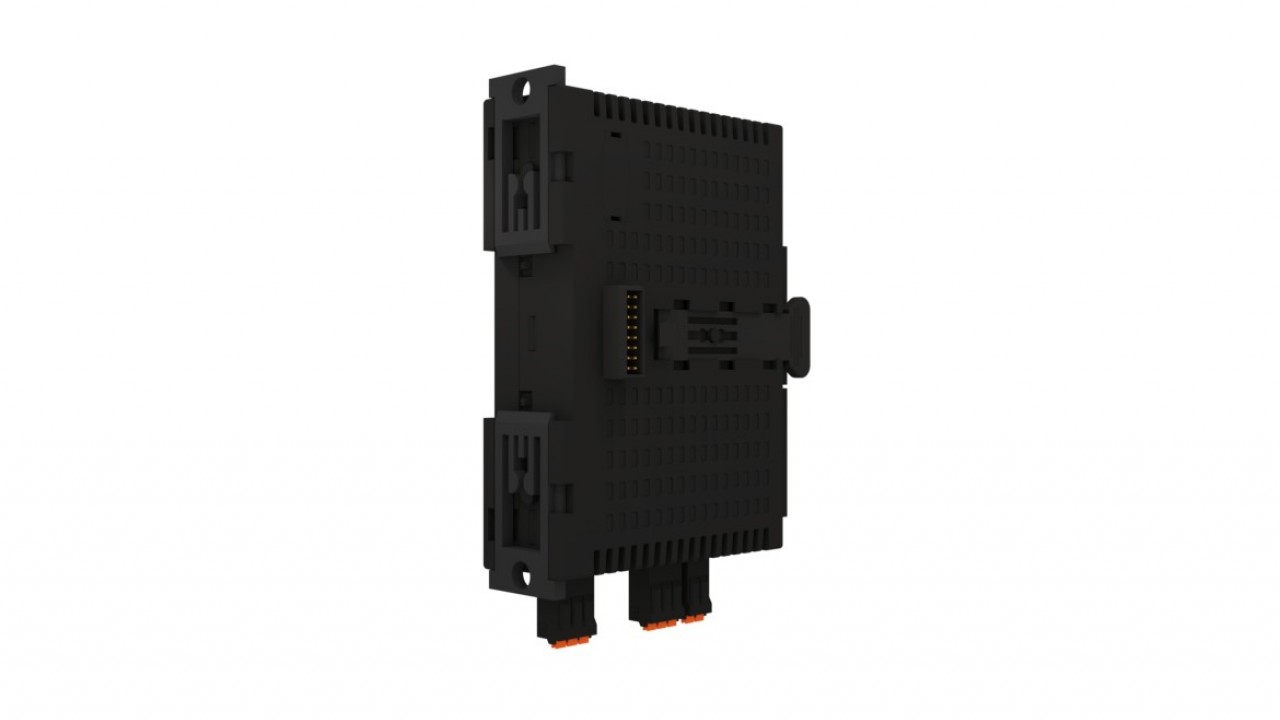

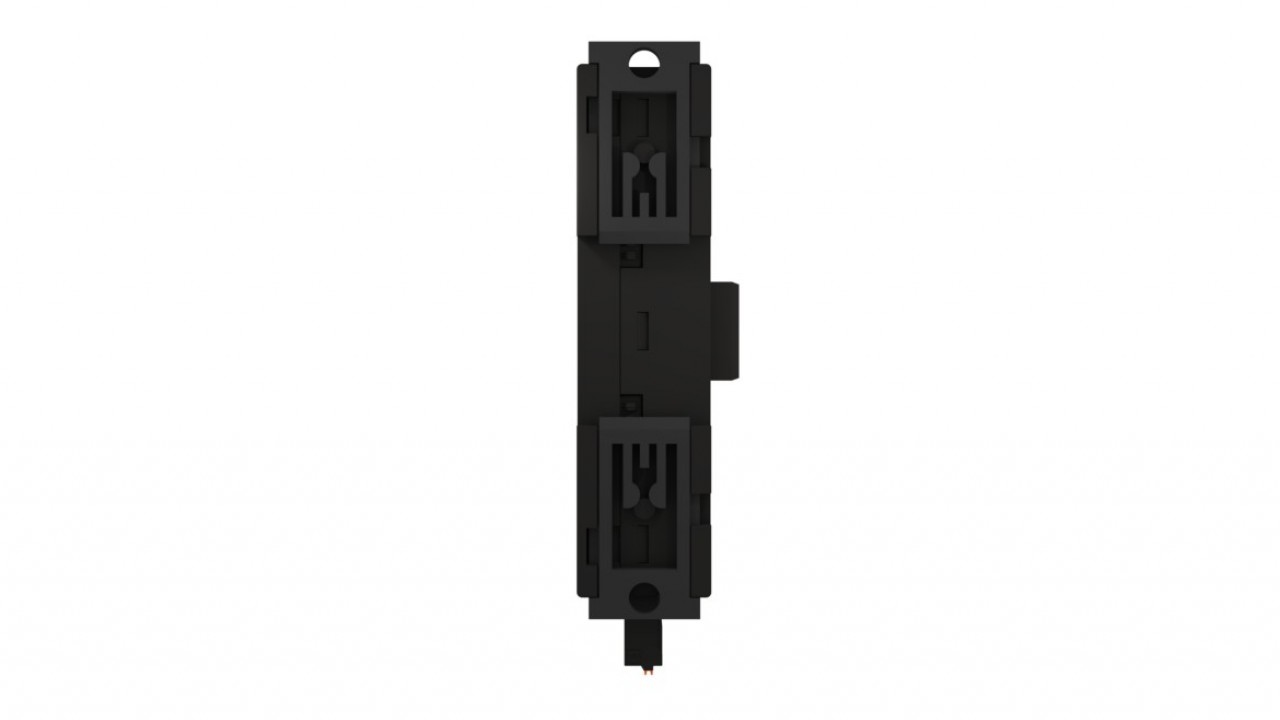

IPERTU Slim Plus PLC CPU Module
200kHz Digital Input - Transistor Output Slim Plus PLC CPU Module
9 Digital inputs (NPN / PNP),
6 Digital Outputs (PNP),
3 Channel 200kHz (A,B,Z), encoder or fast counter input,
3 Channel 100kHz Pulse output frequency,
Modular connectivity (Max. 16 devices, 268 I/O ports),
Built-in calendar-clock (RTC),
Data logging via USB,
Ethernet 10/100 Mbit,
Modbus RTU communication with RS485 and RS232,
Easy programming with IPERTU.IDE Ladder (LD) language.
WQC “Web Quick Connect” feature ; Easy access
via internet connection from all around the world
Accessing and monitoring Ipertu PLC modules
without the need for any program via Web Browser
with IPERTU Scada feature. Share :
6 Digital Outputs (PNP),
3 Channel 200kHz (A,B,Z), encoder or fast counter input,
3 Channel 100kHz Pulse output frequency,
Modular connectivity (Max. 16 devices, 268 I/O ports),
Built-in calendar-clock (RTC),
Data logging via USB,
Ethernet 10/100 Mbit,
Modbus RTU communication with RS485 and RS232,
Easy programming with IPERTU.IDE Ladder (LD) language.
WQC “Web Quick Connect” feature ; Easy access
via internet connection from all around the world
Accessing and monitoring Ipertu PLC modules
without the need for any program via Web Browser
with IPERTU Scada feature. Share :
| Features | Descriptions |
| Technicial Specifications | |
| Supply Voltage | 24 VDC (±%20)(19,2 VDC - 28,8 VDC) |
| Power Consumption | 2W |
| Communication Port | 1x RS-232, 1x RS-485 Modbus RTU |
| Program Installation/Configuration | 1x USB (Mini USB2.0) |
| CPU Speed | 12ns/command |
| LD Command Speed | 30ns/command |
| MOV Command Speed | 80ns/command |
| Program Capacity | 196kB |
| Data Memory | 27 kB |
| Retain Memory | 4kB |
| Retain Lifetime | 10 Year |
| Digital Inputs | 9x Digital NPN /PNP inputs |
| Response Speed | 2.5μs for 9 inputs |
| Max. Current | 6 mA |
| Digital Outputs | 6x |
| Reaction Time | 5µsn |
| Digital Output Current | 0.3 A (single channel), 1.8 A (total COM currents) |
| Operating temperature | -10°C...+60°C |
| Storage Temperature | -20°C...+70°C |
| Mounting Type | Rail Mounting |
| Approvals | CE |
