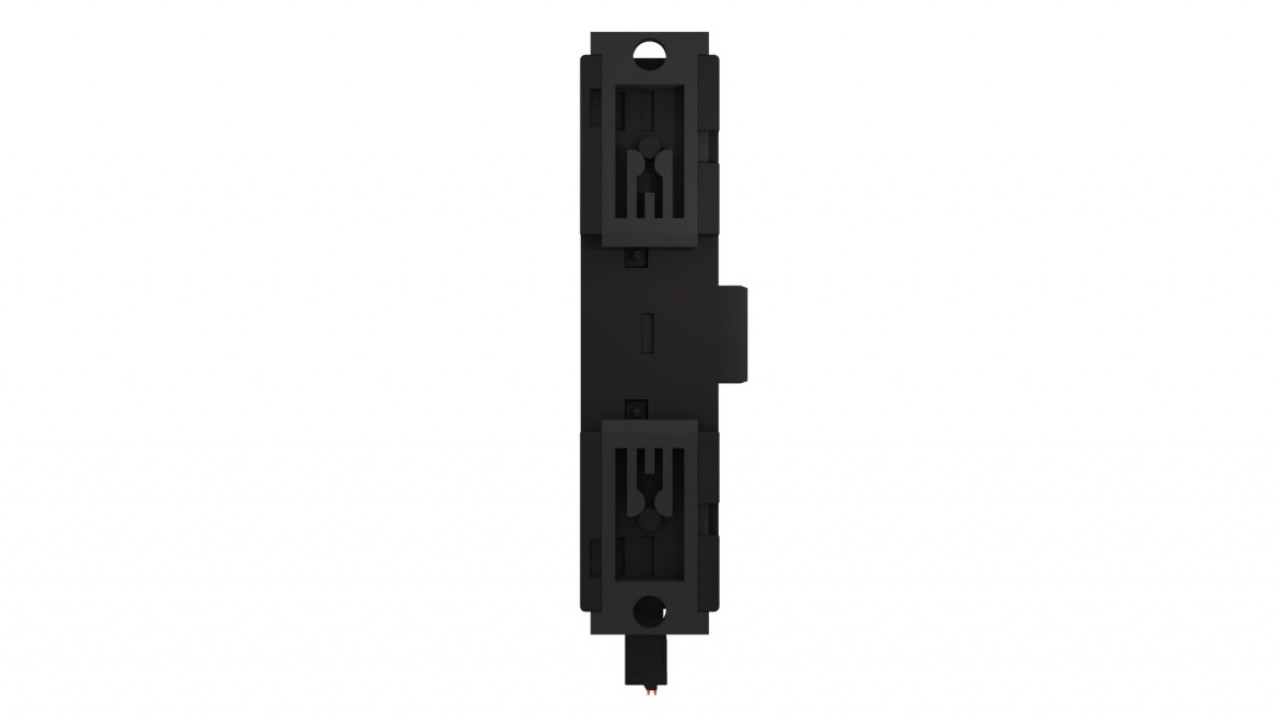

Relay Output Module
14x Relay Output Module
Compatible with Modbus RTU (RS-485) Master devices,
14x Relay (NO) output,
Mini USB-USB2.0 (Software Download/Configuration),
Modular Connection (Maximum 16 devices),
Snap-in type terminal,
25mm width. Share :
14x Relay (NO) output,
Mini USB-USB2.0 (Software Download/Configuration),
Modular Connection (Maximum 16 devices),
Snap-in type terminal,
25mm width. Share :
| Features | Descriptions |
| Technical Features | |
| Supply Voltage | 24Vdc ( ±%20) |
| Power Consumption | 2,5W |
| Communication Port | 1x RS-485 |
| Program Installation/Configuration | 1x USB (Mini USB2.0) |
| Inputs | - |
| Outputs | 14x (1,5A) |
| Reaction time | 10 msn |
| Operating Temperature | -10°C...+60°C |
| Storage Temperature | -20°C...+70°C |
| Mounting Type | Rail Mounting |
| Approvals | CE |
