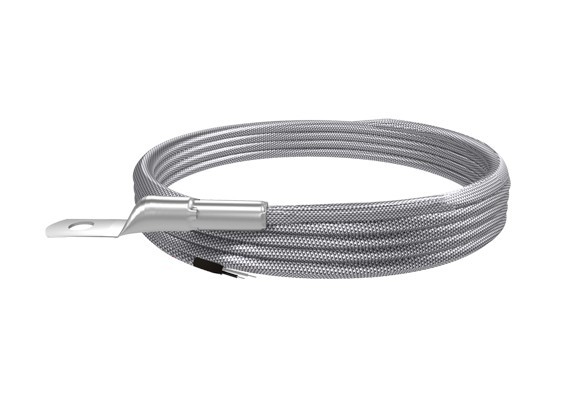

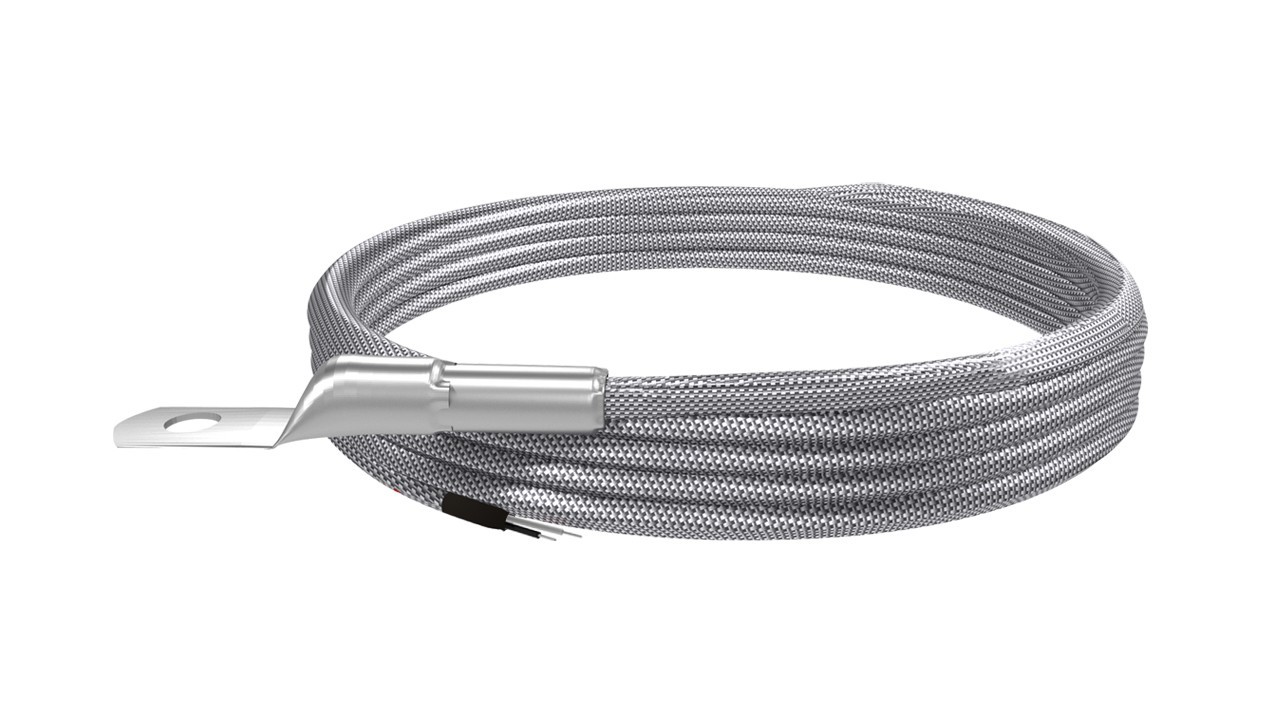

(TC-SKP) Bayonet Type Cable Lug
“J” and “K” type Thermocouples
Share :
| Features | Descriptions |
| Max. operating temperature | 400°C for braided wire |
| Diameter | Standard SKP5 (M5 Screw) |
| Standard cable types | Fiber glass + fiber glass + braided wire, 2x 0,22mm |
| Standard cable length | K01 = 1 mt, K1,5 = 1,5 mt, K02 = 2 mt K03 = 3 mt, K04 = 4 mt, K05 = 5 mt |
| Sensor type | DIN/IEC-584 "J" FeCu-Ni E= 1.J, DIN/IEC-584 "K" NiCr-Ni E= 1.K, |
| Protection tube material | Copper Tin Plated |
| Connector | |
| Fittingnut | |
| Transmitter |
