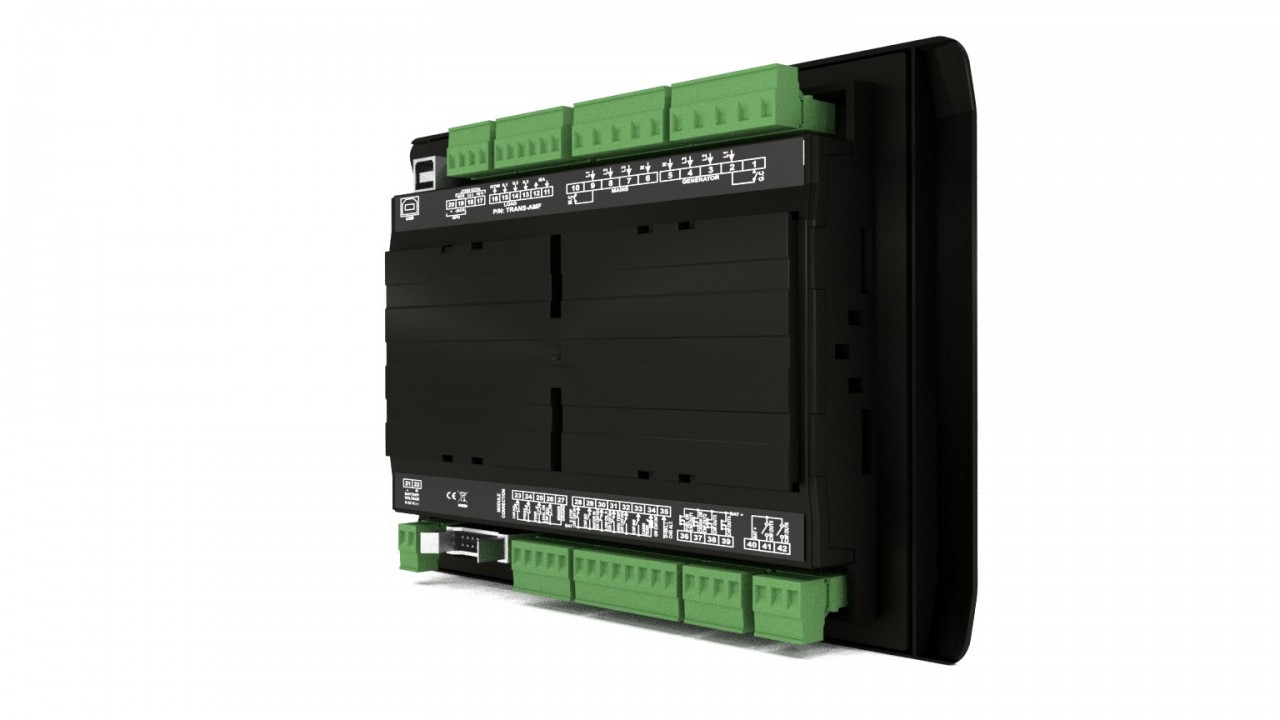

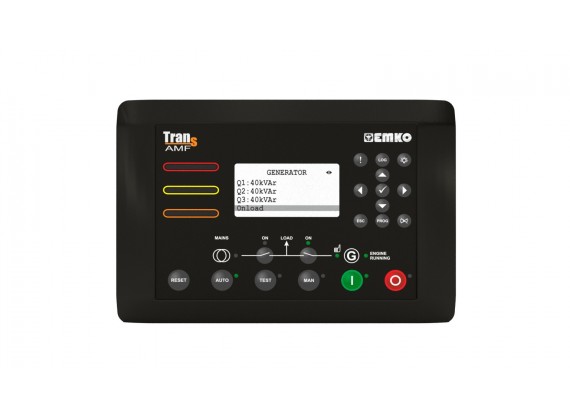

Trans-AMF
Automatic Genset Controller with Transfer Switching
CanBus J1939 ECU communication
Selectable second language
Log last 500 events & alarm information with measured values
Statistics records
Mains and Generator phase sequence control
Selectable Resistive sender types; Pt-100, VDO, US, GM, Ford, Datcon, etc.
Automatic transfer switching control and engine control
SPN, FMI and OC values reading from engines via J1939 Share :
Selectable second language
Log last 500 events & alarm information with measured values
Statistics records
Mains and Generator phase sequence control
Selectable Resistive sender types; Pt-100, VDO, US, GM, Ford, Datcon, etc.
Automatic transfer switching control and engine control
SPN, FMI and OC values reading from engines via J1939 Share :
Features | Descriptions |
LCD Languages | English/Chinese, English/Deutch, English/Turkish, English/Italiano, English/Espanol, English/Francais, English/Russian English / Ukrainian, English / Polish |
Inputs | 6x Configurable digital, 4x Analogue senders, 1x Cabinet temperature, Magnetic Pickup, Charge Alternator D+(WL) inputs |
Outputs | Configurable 2x Relays, 4x Transistors, MBR and GBR outputs |
Current Measurement | 3 phases CT inputs for Load Current, 1x CT input for Earth Current |
Voltage Measurement | 3 phase mains, 3 phase generator |
Case | |
Dimensions | 229mm x 152mm x 41mm |
Protection Class | NEMA 4X IP65 at front side |
Operating Range | |
DC Battery Supply range | 8 to 32Vdc, max.operating current is 360mA |
Sender Measurement | 0 ... 1300 ohm, Accuracy: 1%FS, resolution: 1 ohm |
Cabin.Temp.Measuremet | -50 ... +100 ºC, Accuracy: 1 % FS, resolution: 1 ºC. |
Operating / Storage Temp. | -20°C with +70°C / -40°C with +80°C |
Expansions | |
Internal | RS-485 Communication |
GPRS | Trans-GPRS , Trans-Web_GPRS |
Embedded WEB server | Trans-Web_Ethernet |
Serial ModBus | Trans-Messenger.485 module with |
Approvals | CE, GOST-R |
