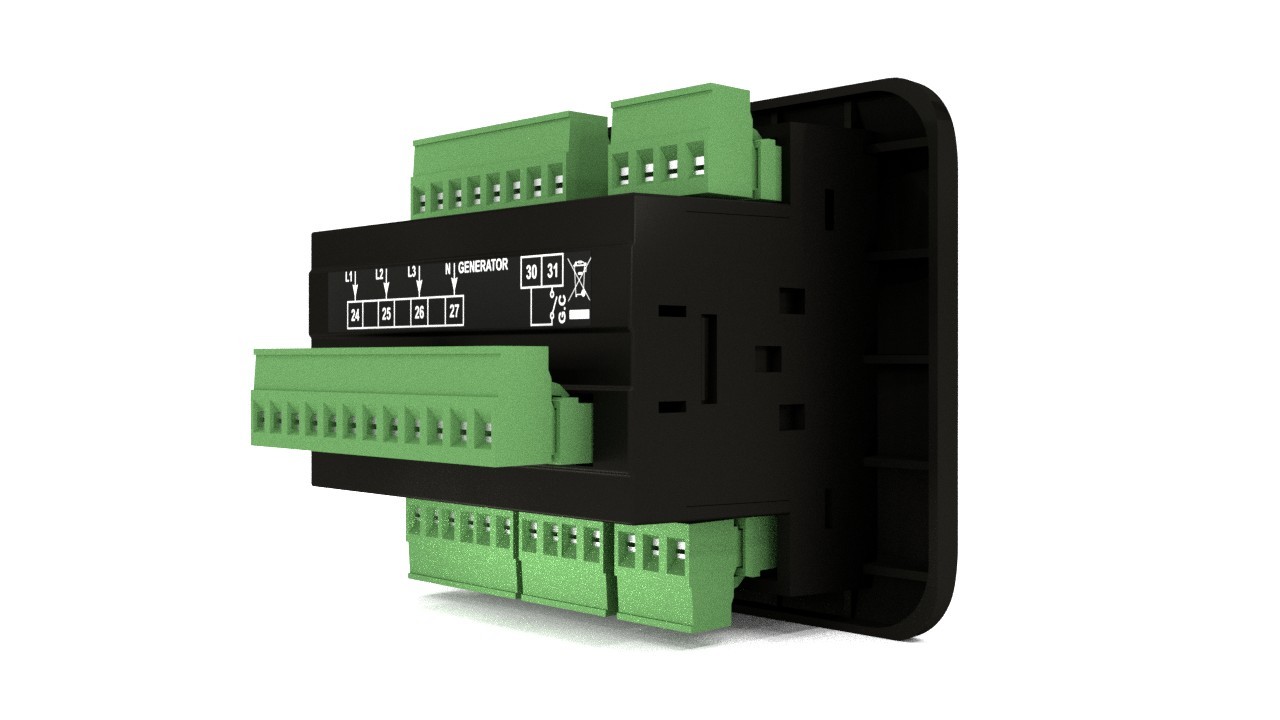

Trans-MiniAUTO++
Automatic Genset Controller
Canbus J1939 ECU communication
Log last 50 events & alarm information with measured values
Statistics records
Power factor measurement for 3 phases
Selectable Resistive sender types; Pt-100, VDO, US, GM, Ford, Datcon, etc..
SPN, FMI and OC values reading from engines via J1939 Share :
Log last 50 events & alarm information with measured values
Statistics records
Power factor measurement for 3 phases
Selectable Resistive sender types; Pt-100, VDO, US, GM, Ford, Datcon, etc..
SPN, FMI and OC values reading from engines via J1939 Share :
Features | Descriptions |
LCD Languages | English/Chinese, English/Deutch, English/Turkish, English/Italiano, English/Espanol, English/Francais, English/Russian |
Inputs | 3x Configurable digital, 3x Analogue senders, Magnetic Pickup, Charge Alternator D+(WL) inputs |
Outputs | 6x configurable transistor, Generator Contactor Output |
Current Measurement | 3 phases CT inputs for Load Current |
Voltage Measurement | 3 phases for Alternator |
Case | |
Dimensions | 111mm x 81mm x 61mm |
Protection Class | NEMA 4X IP65 at front side |
Operating Range | |
DC Battery Supply range | 8 to 32Vdc, max.operating current is 360mA |
Sender Measurement | 0 to 1300 ohm, accuracy: 1%FS, resolution: 1 ohm |
Cabin.Temp.Measuremet | |
Operating / Storage Temp. | -20°C with +70°C / -40°C with +80°C |
Expansions | |
Internal | Parameter configuration via RS-232 serial communication |
GPRS | |
Embedded WEB server | |
Serial ModBus | |
Approvals | CE, GOST-R |
